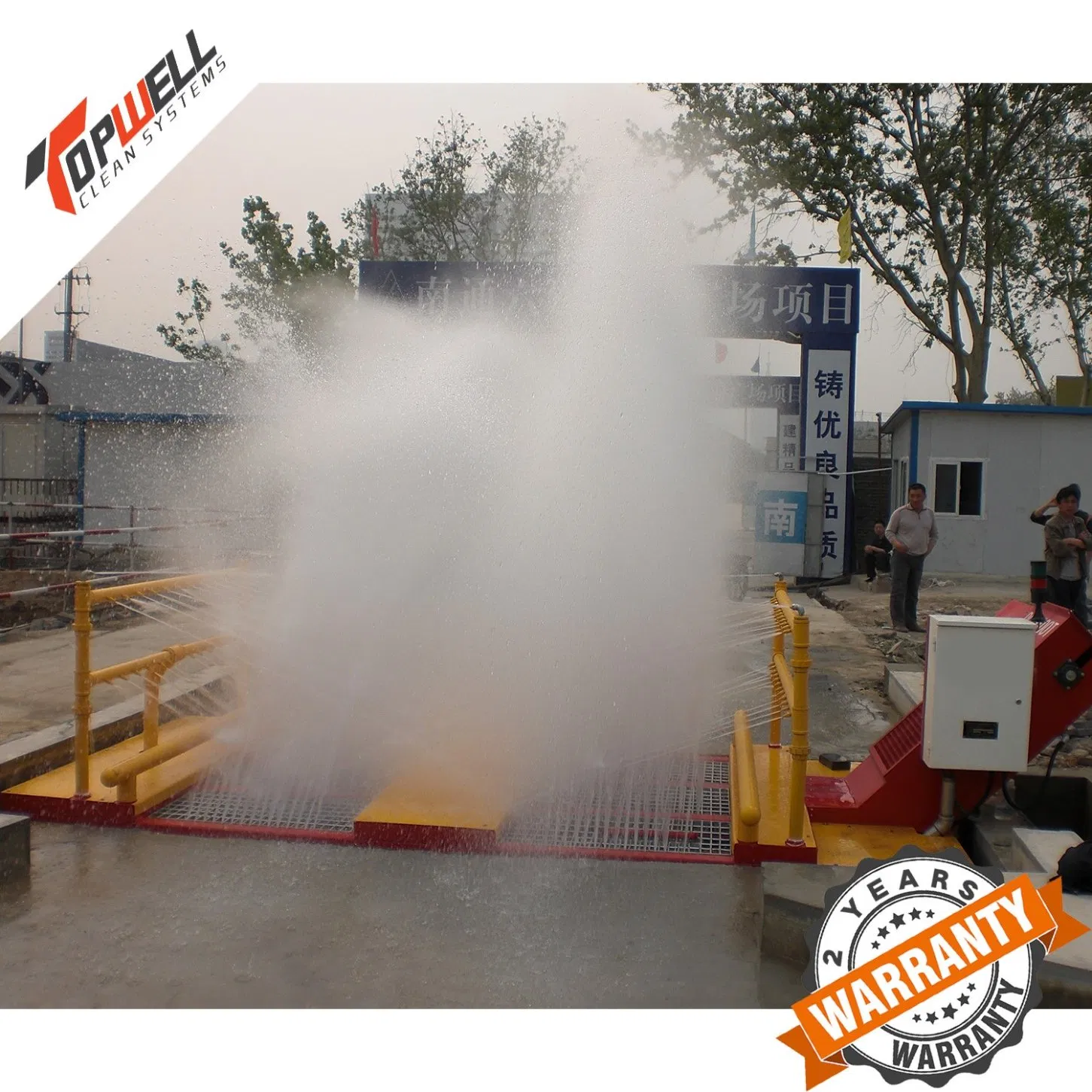

أنظمة غسيل العجلات تحت الجسم من توبويل للسيارات، Dcx-100t الطراز

1 / 5

أنظمة غسيل العجلات تحت الجسم من توبويل للسيارات، Dcx-100t الطراز

التخصيص:	متاح
خدمة ما بعد البيع:	دعم طوال فترة الحياة عبر الإنترنت
الضمان:	سنتان

إرسال استفسار

وصف المنتج

المعلومات الأساسية

نموذج رقم. DCX-100T

اكتب نوع بشر

تطبيق المواقع الصناعية: مواقع البناء، إلخ

وقود كهربائي

عملية التنظيف تنظيف المياه الباردة

شهادة CE

ميزة قم بالقيادة عبر النوع

وظيفة الجزئي ارتفاع ضغط تنظيف المياه

مادة الفولاذ المغلفن

حالة جديد

السوق الرئيسي جنوب شرق آسيا

الطراز DCX-100t

سعة الغسيل 80 سيارة في الساعة

أقصى عرض لغسل الشاحنات 800 مم

وزن الماكينة 3200 كجم

ماء من HP مجهزة

طريقة الغسيل قم بالقيادة عبر نوع الحشوة

اغسل لمدة <80 طنًا من الشاحنات الهندسية، ومركبة النقل

ابدأ من جديد بدء الاستشعار الميكانيكي

ضغط الغسيل 3 كجم/سم2

استهلاك المياه 10 لترات/السيارة

إجمالي قدرة الماكينة 16 كيلو واط

مياه الصرف الصحي قم بإزالة الوحل أوتوماتيكيًا

مصدر الطاقة 380 فولت، 50 هرتز، 3 بكسل؛ قبول مخصص

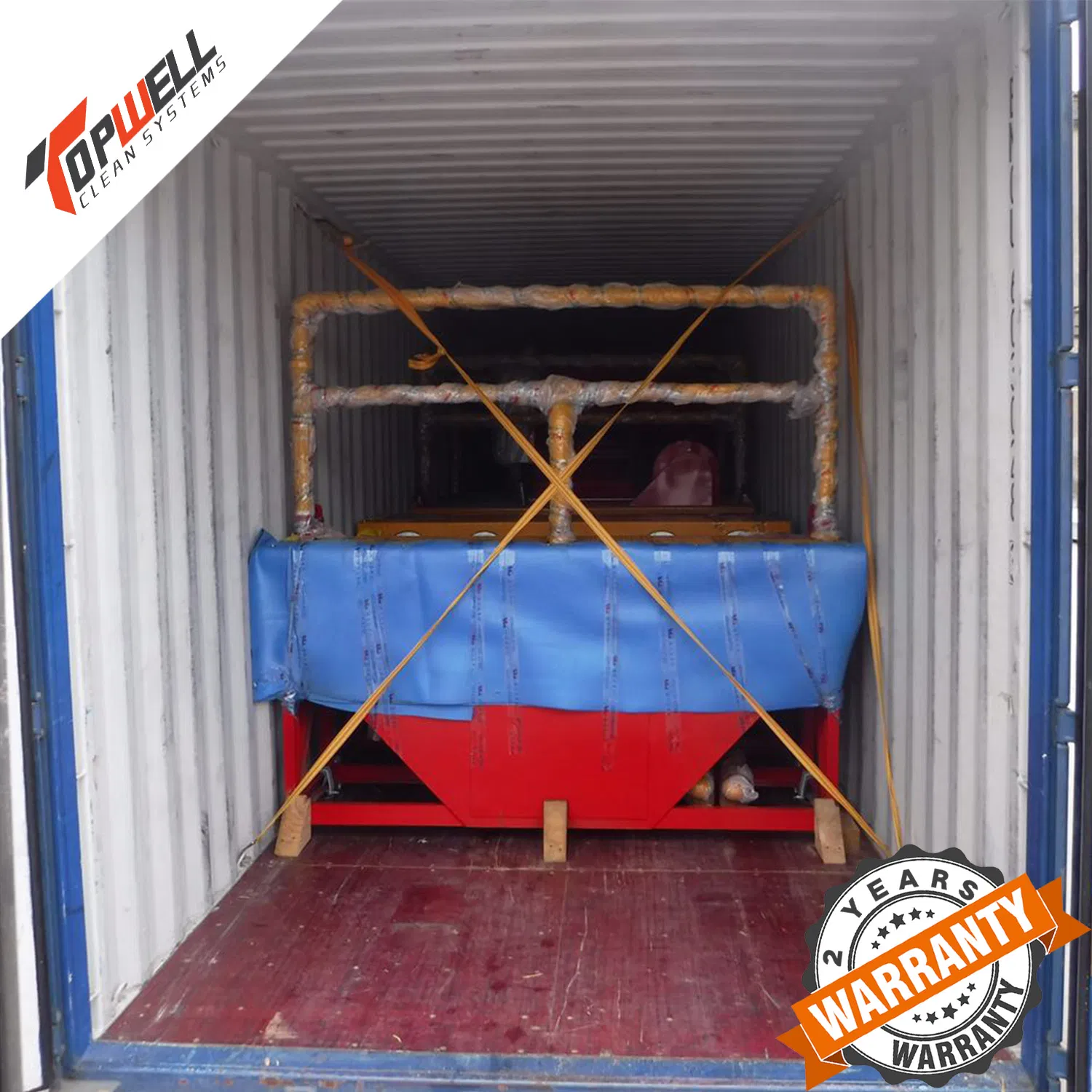

حزمة النقل منصة مكواة

تخصيص 2250 (عرض) × 5350 (طول) × 2100 (ارتفاع) مم

الأصل الصين

رمز النظام المنسق 8424899990

القدرة الإنتاجية 800/مجموعة في السنة

Product Description

The DCX series foundation pit type wheel washing machine is specially designed for cleaning various heavy load construction vehicles, effectively solving the pollution of construction vehicles to the road.

This type of equipment has fast cleaning speed and easy installation. It is suitable for all kinds of places, such as landfills, construction sites, concrete plants, mines, industrial manufacturing, crusher plant, and other places. The average washing time can wash 60 to 80 vehicles per hour.

The sewage after the truck wash will return to the foundation pit, and will be reused after the mud is automatically discharged through the mud discharging mechanism, without the need to add clean water, saving a lot of water resources. This series of wheel washing machines are suitable for relatively fixed places. If the wheel washing machine needs to change the place from site to site, it is only necessary to use a crane to lift the equipment from the foundation pit.

Product Parameters

Item	Parameter
Model	DCX-100T
Equipment Size (mm)	2250(W)×5350(L)×2100(H)
Max truck width (mm)	2800
Weight	3200kg
Wash way	Drive through type
Wash for	<80 tons engineering truck, transport vehicle
Start way	Mechanical sensing start
Wash pressure	3kg/cm²
Wash time	60-80sec/ vehicle
Water used	10L/vehicle
Machine total power	16KW
Material	Galvanizing framework with stainless steel grating
Sewage	Remove mud automatically
Power supply	380V, 50Hz, 3P; Accept custom
Side nozzle	Φ4.2, 42pcs
Water spray pipe	DN50 galvanized pipe
Submersible pump outlet water pipe	DN65 galvanized pipe
Mud discharge direction	Left/Right side, depends on client site

Main Features

Automatic mud discharge and reuse the water
It can be adapted to different workplaces, such as mining plant, quarry plant, crusher plant, landfill and etc., easily transition from site to site
Import electrical components from well-known manufacturers to ensure safety and reliability
Patent product, effectively solve the pollution of construction vehicles to urban roads
Professional hot-dip galvanized framework with stainless steel grating, using lifetime can reach 8-10 years

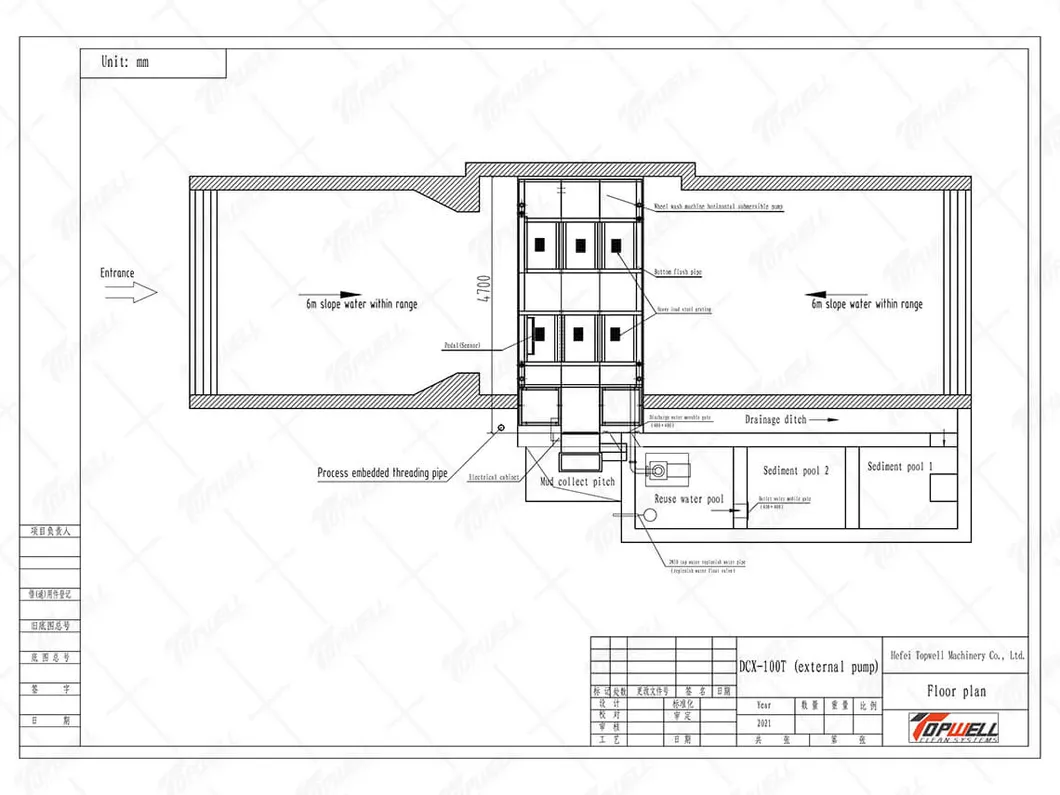

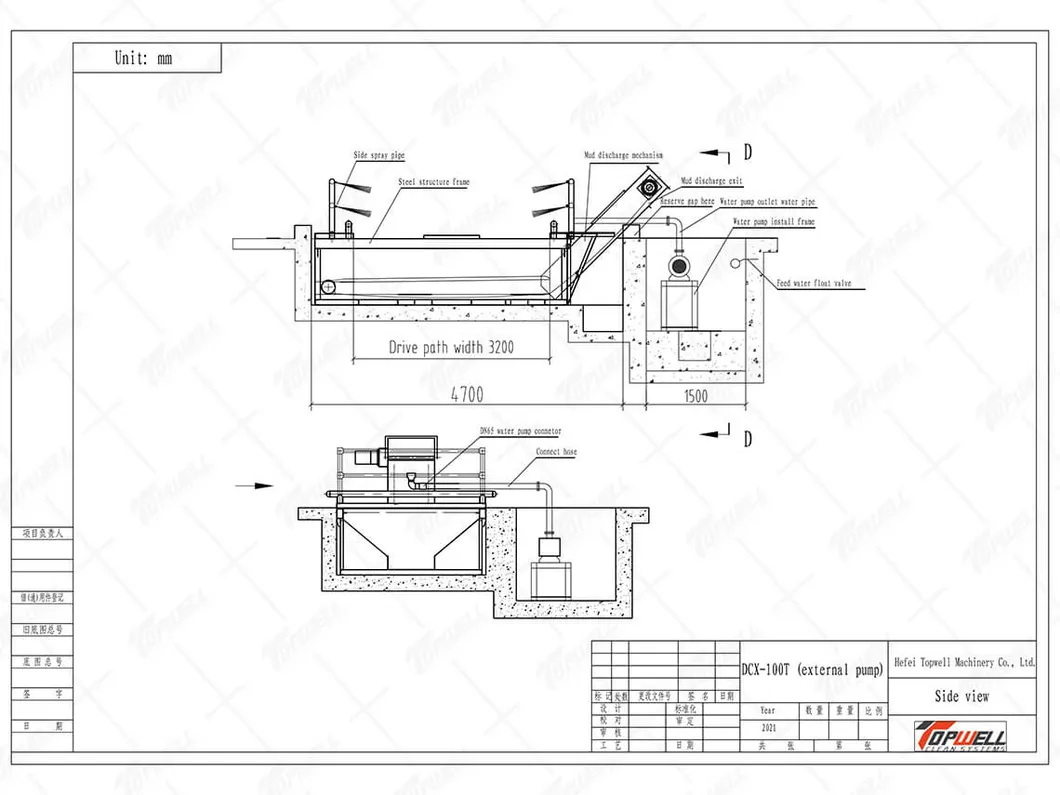

Machine Framework Drawing

أنظمة غسيل العجلات تحت الجسم، Dcx-100t الطراز

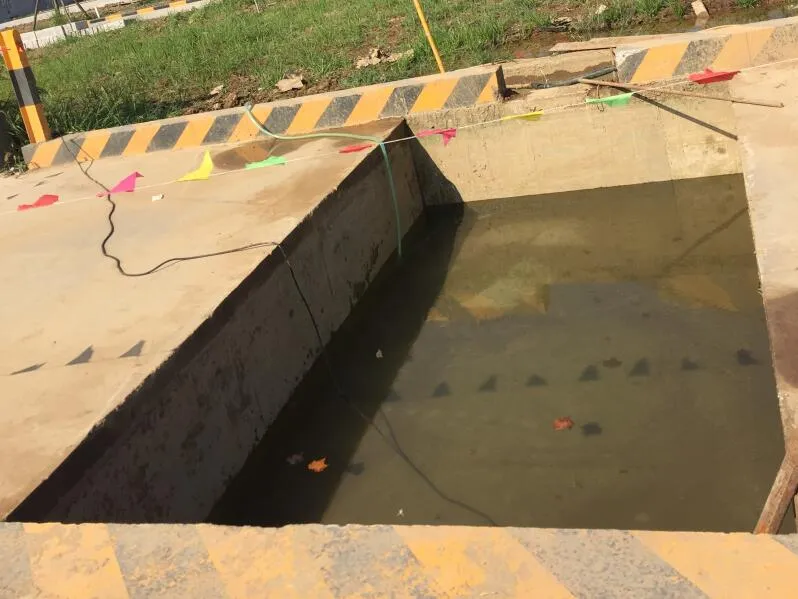

Foundation For Reference

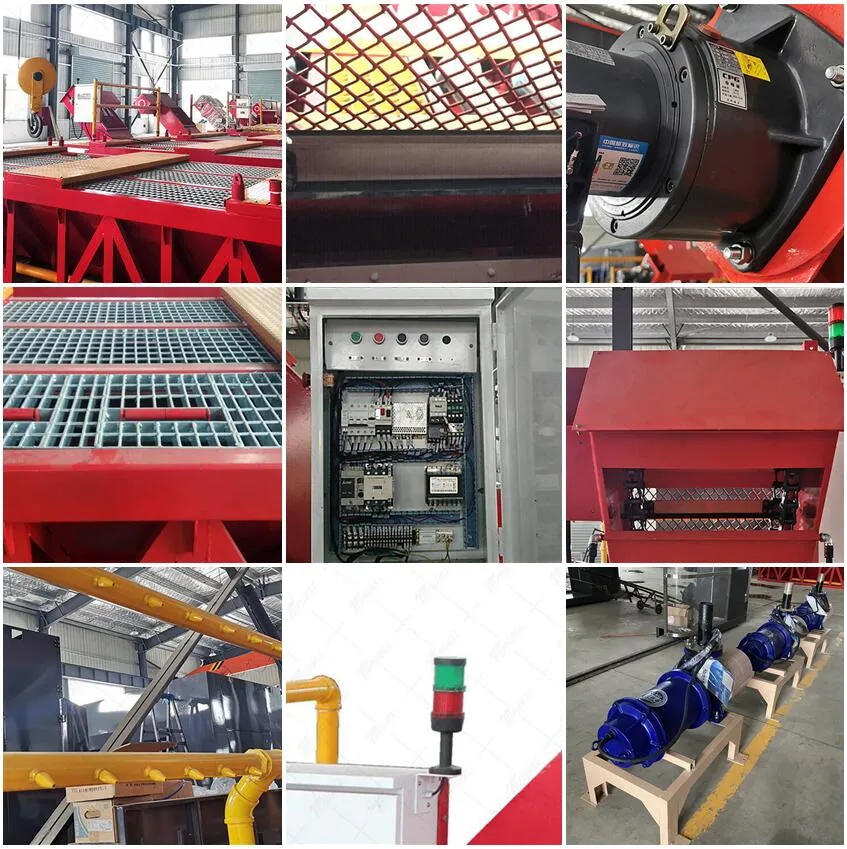

Details You Care About

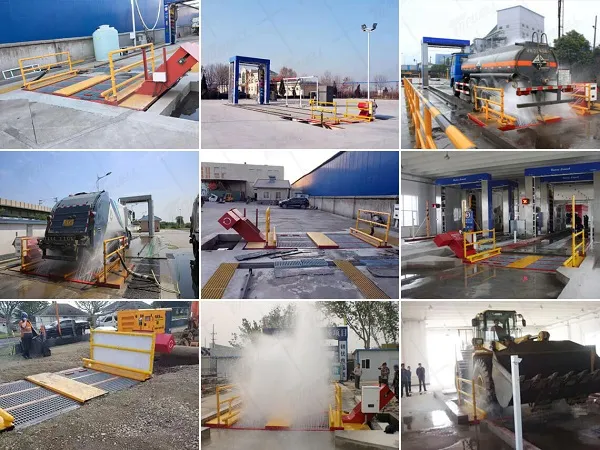

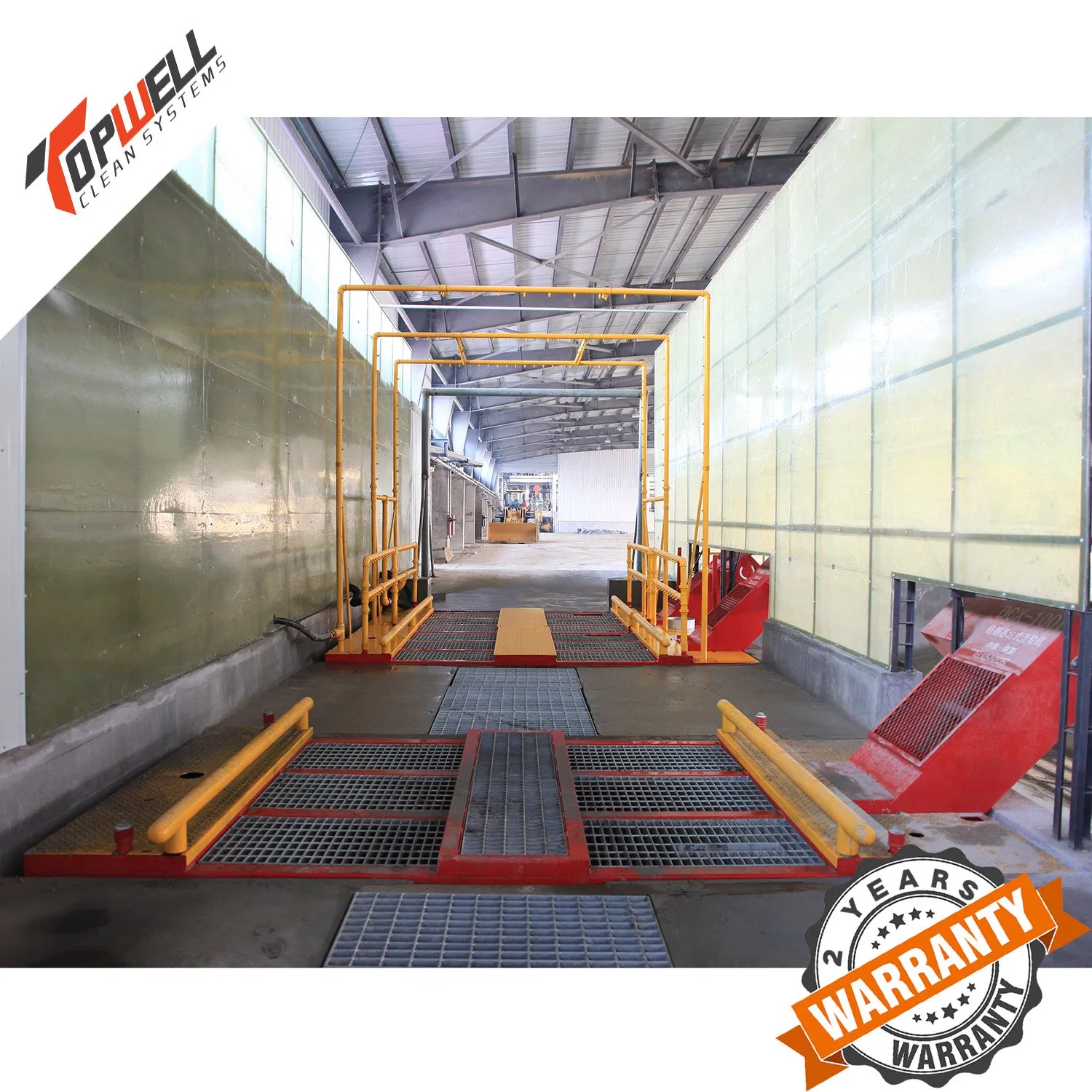

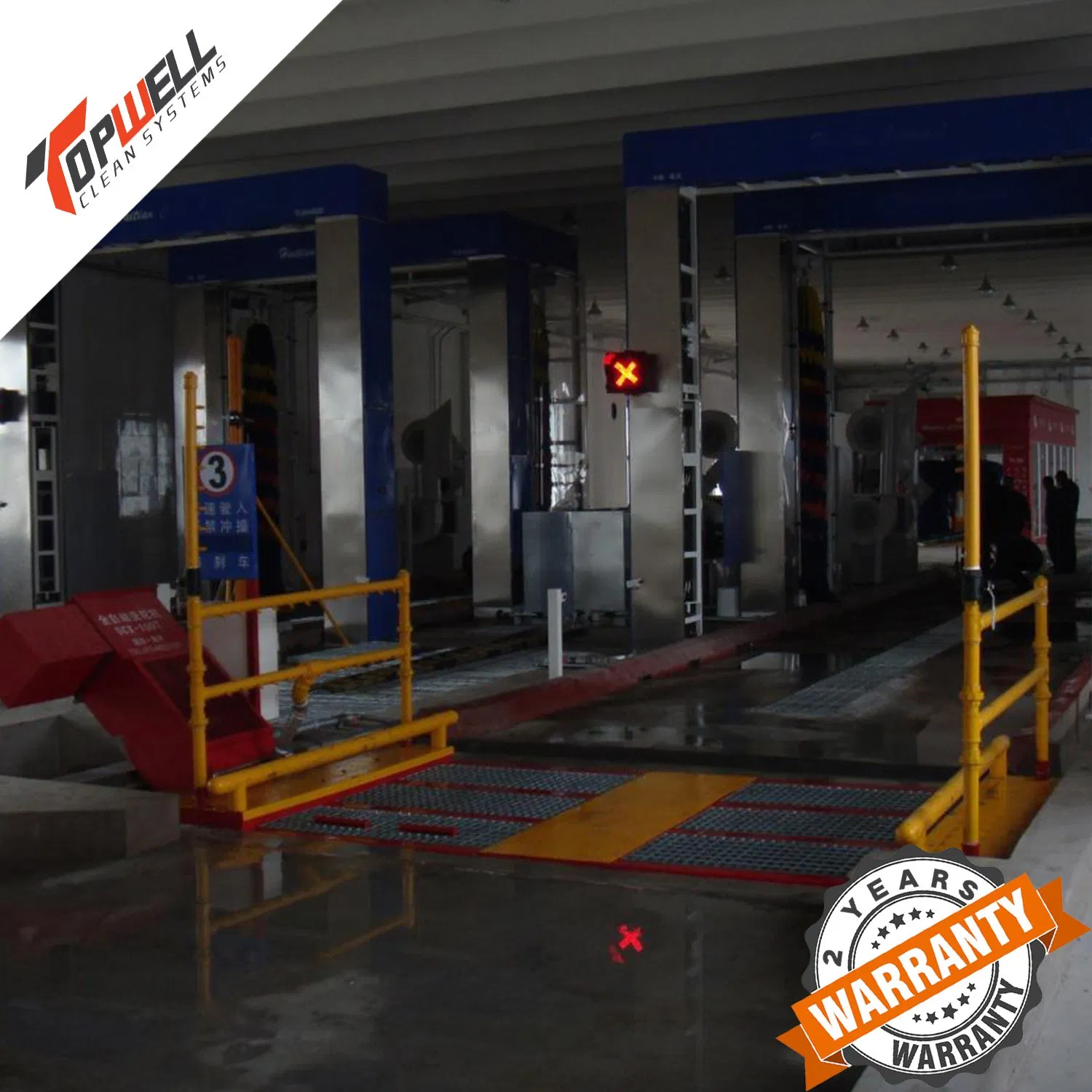

Client Case

FAQ

How to solve the installation problem?

We provide detailed installation drawings, layouts, and online guidance. The equipment will be pre-installed and debugged in the factory before leaving, and each component will be marked to maintain correspondence with the installation drawings. On-site engineering dispatch for setup can be arranged under specific agreement requirements.

How to solve the after-sales issues?

We establish a dedicated support group for each customer, consisting of technical and customer service personnel. If you encounter any operational issues, simply share descriptions, photos, or videos, and our support team will guide you to a solution immediately.

How long is the machine warranty?

Washing equipment with brushes is guaranteed for 2 years after delivery, while touchless systems are guaranteed for 3 years. During this period, the cost of parts replacement is covered.

How long is the lead time?

Wheel washing machines take 5 working days; touchless models take 10 working days; rollover units take 20 working days; large vehicle systems require 30 to 35 working days. Non-standard voltages may require an additional 10-15 working days.

Can the washing system connect to payment systems?

Yes, signal integration with self-service payment terminals (supporting coins, banknotes, or cards) is supported. The machine signal wires can be laid out in advance to ensure smooth connection with your local terminal.

How to manage and maintain the equipment without professional knowledge?

Maintenance is straightforward and detailed in the operational manual (e.g., chain lubrication, sensor inspection). If an issue occurs, the system controller's screen displays error log prompts to guide rapid troubleshooting.
