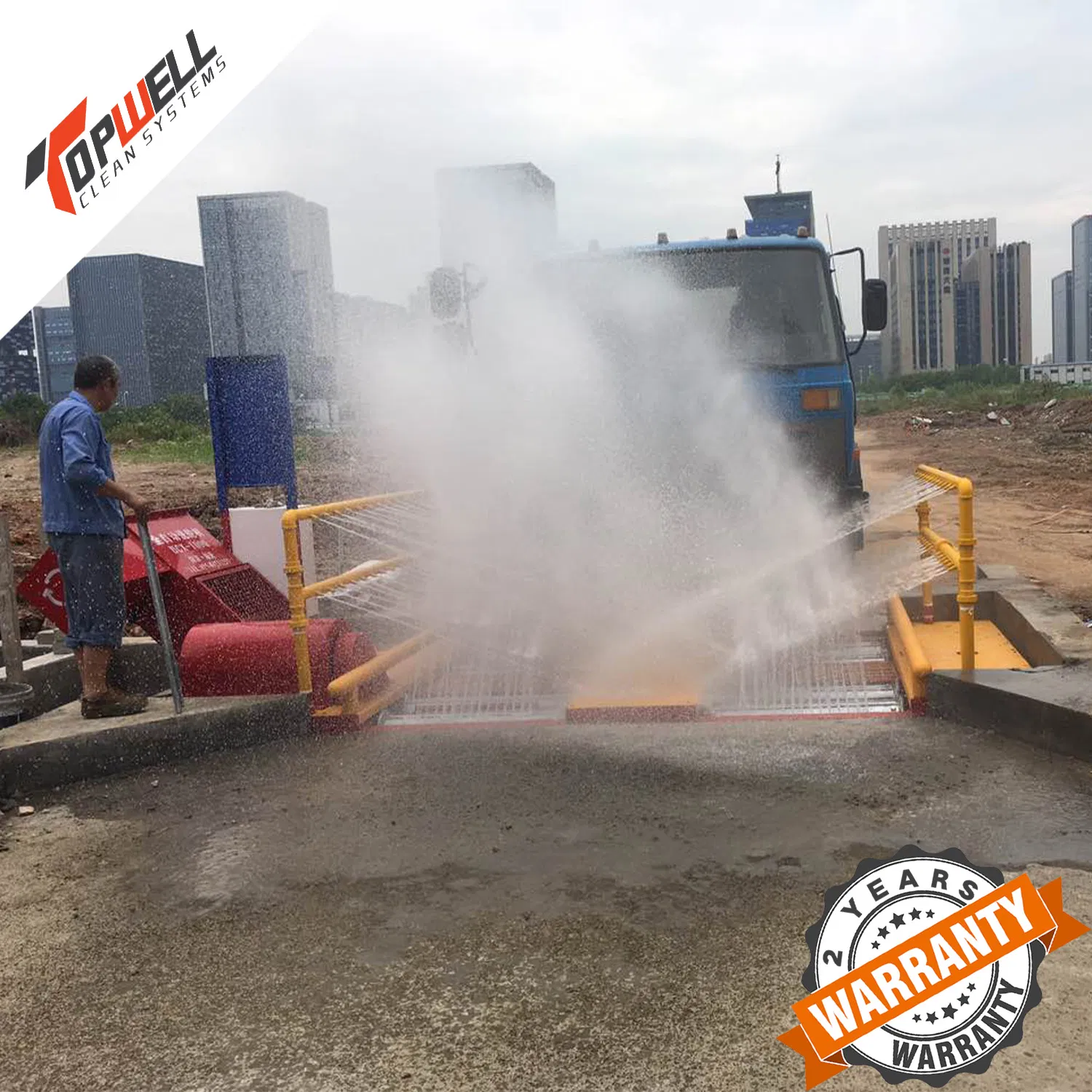

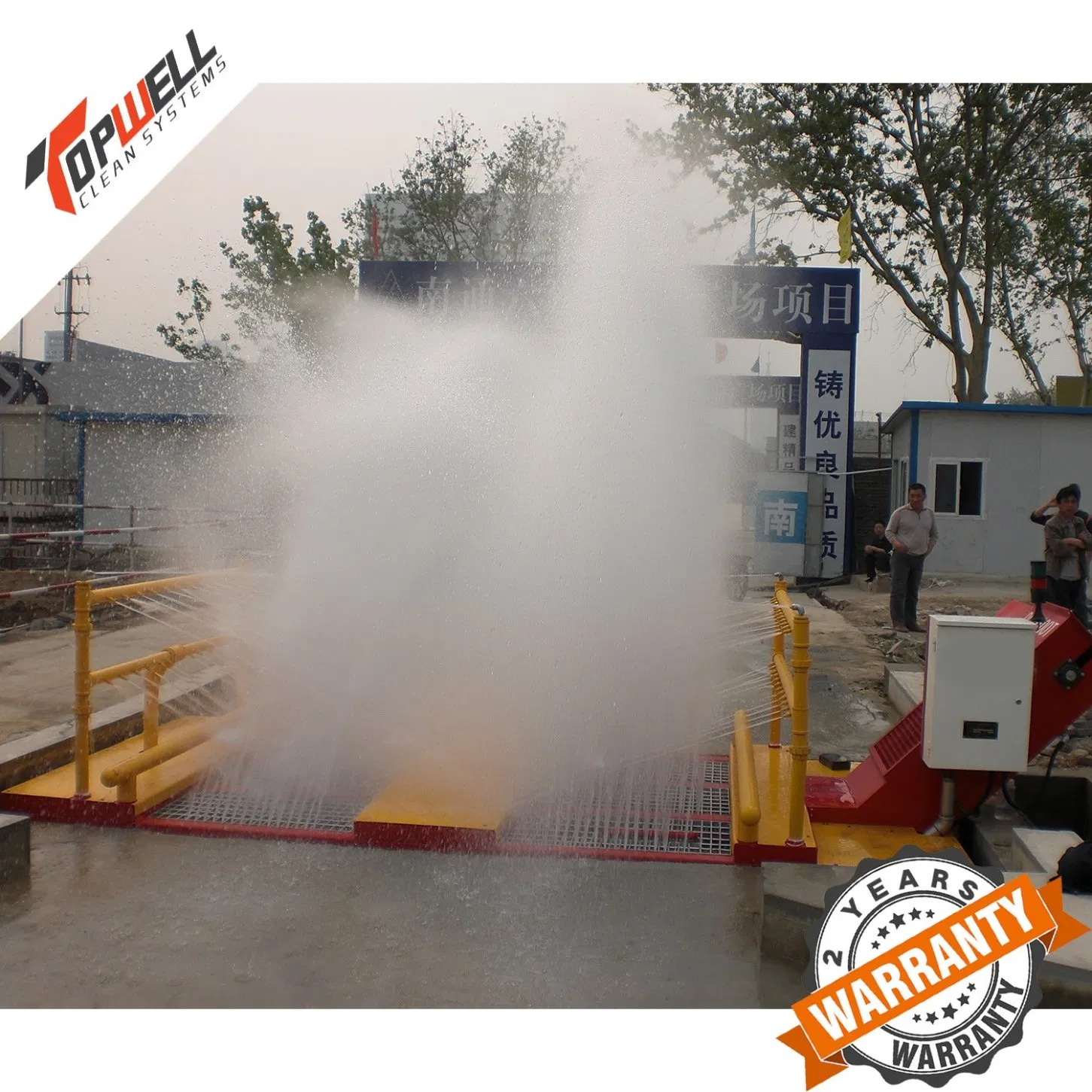

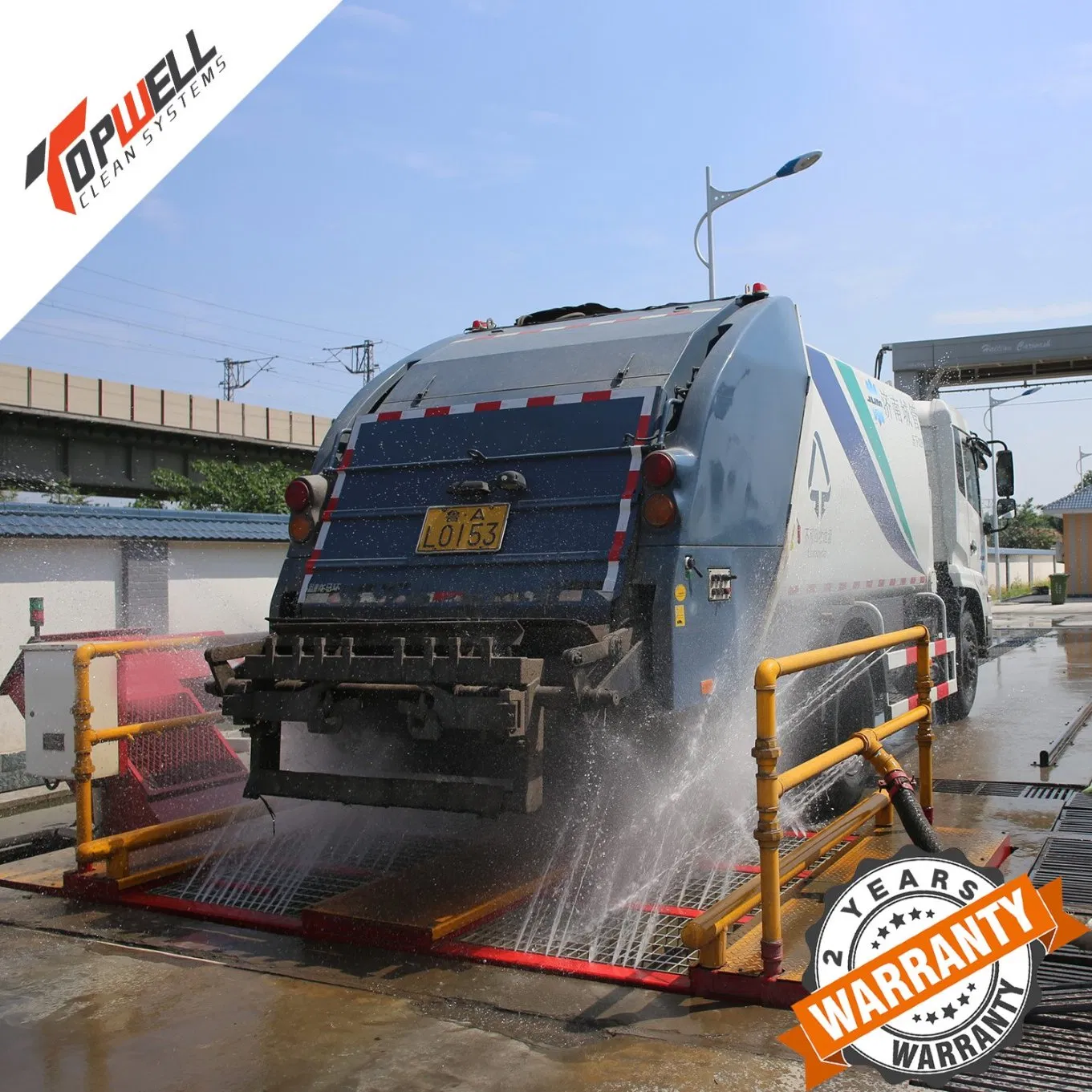

The DCX series foundation pit type wheel washing machine is specially designed for cleaning various heavy load construction vehicles, effectively solving the pollution of construction vehicles to the road.

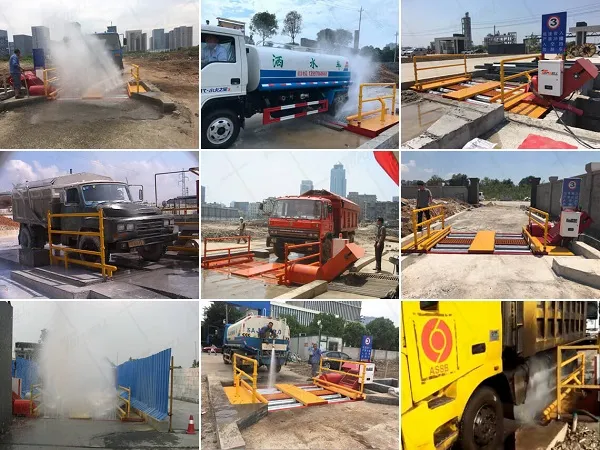

This type of equipment has fast cleaning speed and easy installation. It is suitable for all kinds of places, such as landfills, construction sites, concrete plants, mines, industrial manufacturing, crusher plant, and other places. The average washing time can wash 60 to 80 vehicles per hour.

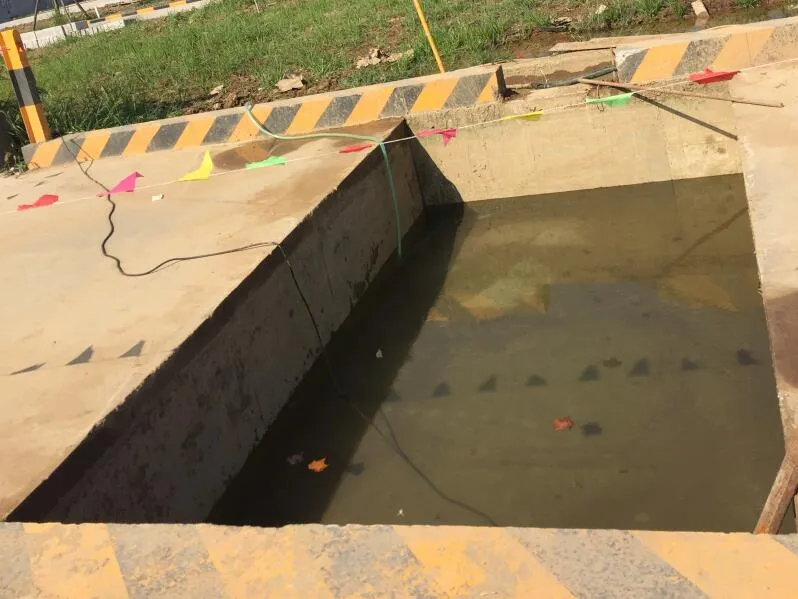

The sewage after the truck wash will return to the foundation pit, and will be reused after the mud is automatically discharged through the mud discharging mechanism, without the need to add clean water, saving a lot of water resources. This series of wheel washing machines are suitable for relatively fixed places. If the wheel washing machine needs to change the place from site to site, it is only necessary to use a crane to lift the equipment from the foundation pit.
| البند / Item | المعايير / Parameter |
|---|---|

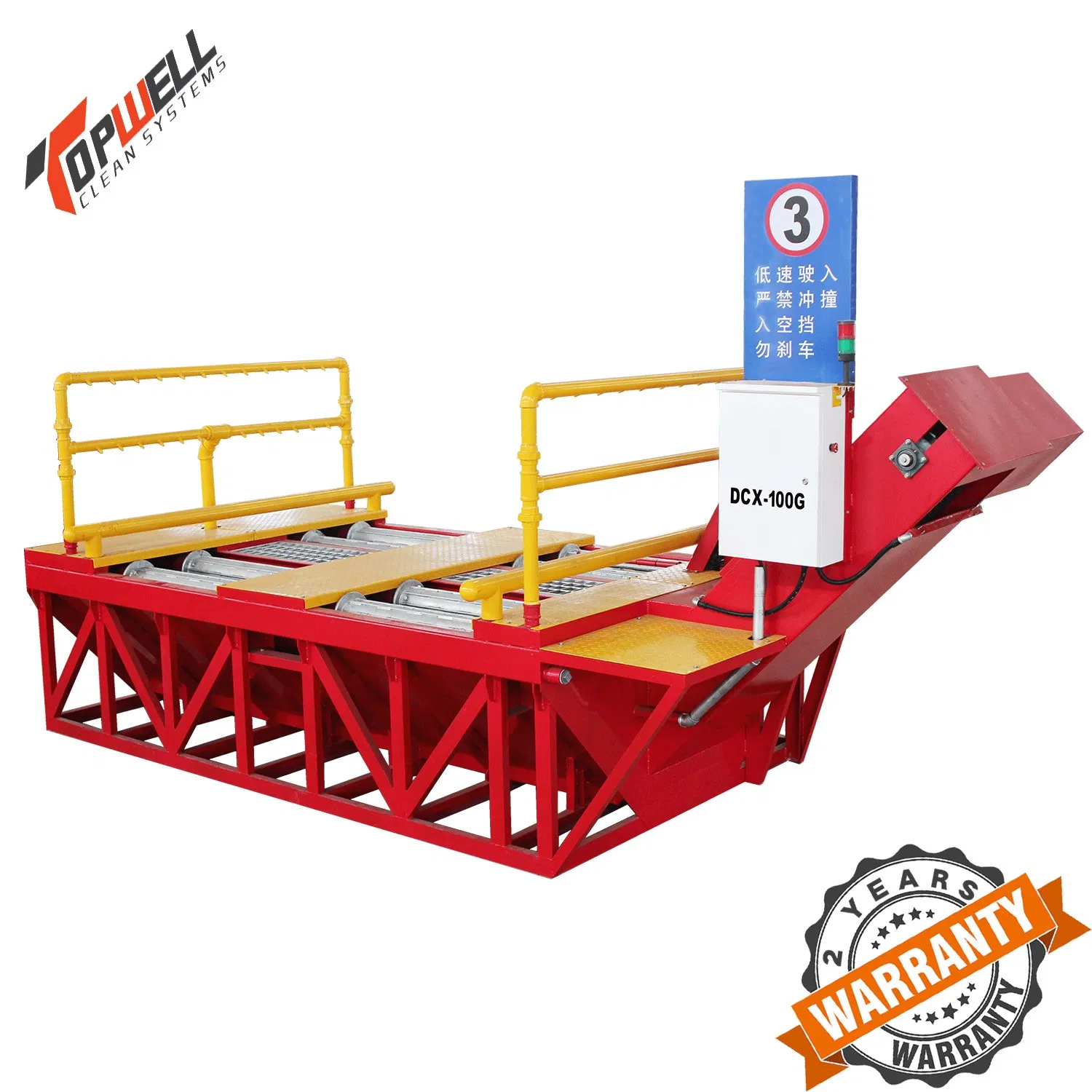

| Model | DCX-100G |
| Equipment Size (mm) | 2250(W)×5350(L)×2100(H) |
| Max truck width (mm) | 2800 |
| Weight | 4300kg |
| Wash way | Roller drive wheels rolling and rinse |
| Wash for | <80 tons engineering truck, transport vehicle |
| Start way | Mechanical sensing start |
| Wash pressure | 3kg/cm² |
| Wash time | 60-80sec/ vehicle |
| Water used | 10L/vehicle |
| Machine total power | 20KW |
| Material | Galvanizing framework with got-dip galvanizing roller |
| Sewage | Remove mud automatically |
| Power supply | 380V, 50Hz, 3P; Accept custom |
| Side nozzle | Φ4.2, 42pcs |
| Water spray pipe | DN50 galvanized pipe |
| Submersible pump outlet water pipe | DN65 galvanized pipe |
| Mud discharge direction | Left/Right side, depends on client site |

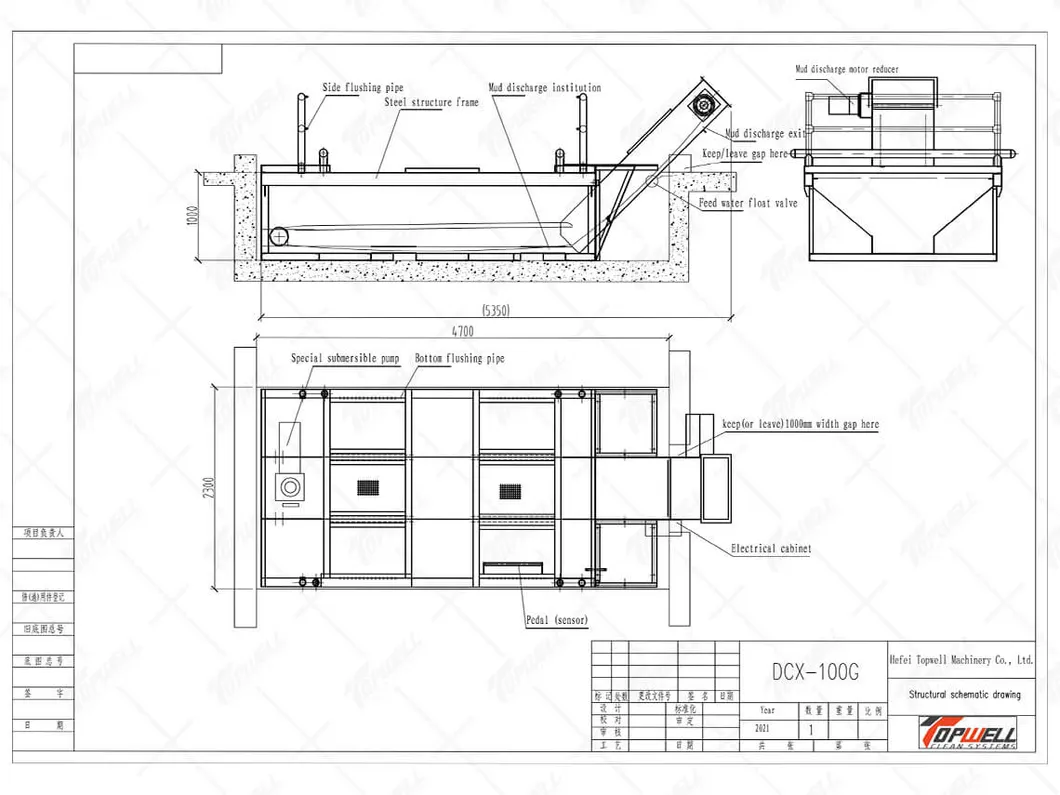

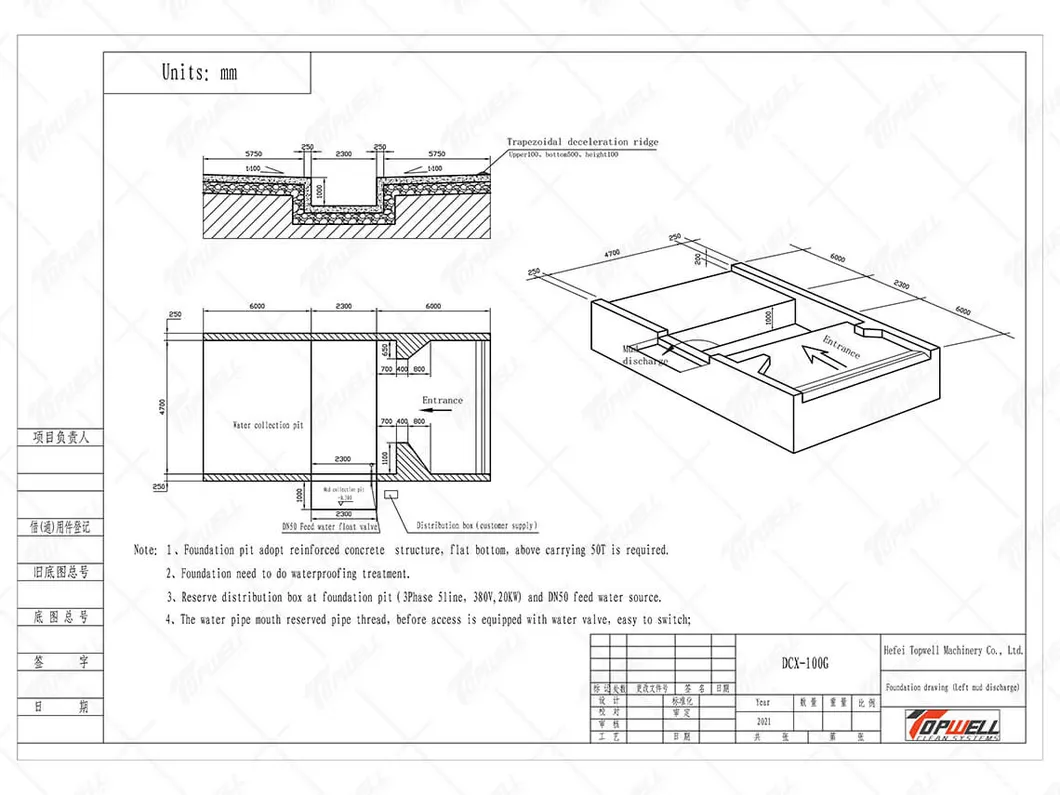

Detailed installation drawings and online guidance will be provided. The equipment is fully installed and debugged in the factory before leaving, and each component is marked to keep a one-to-one correspondence with the installation drawing. Local mechanical and electrical engineers can easily complete the setup with our remote assistance.
A dedicated communication group will be established for each customer, which includes sales coordinators and technical support team members. If you have any issues, simply send a description along with photos or videos to the group, and our team will provide a solution immediately.
For washing machines with brushes, the equipment is guaranteed for 2 years after delivery; touchless wash systems are guaranteed for 3 years. During the warranty period, the cost of parts is covered, while the customer bears the international freight.
Wheel washing machine standard 380V, 50HZ takes 5 working days; rollover configurations take 20 working days; touchless designs take 10 working days; bus and truck washing systems take 30-35 working days. Non-standard voltage customizations require an additional 10-15 working days.
No, if an accessory malfunctions during peak hours, the operator can manually turn off that function on the touch screen interface without affecting the normal operation of other functions. Damaged components can then be replaced after hours.
Locations with high traffic volume are ideal. Prime spots include petrol stations, highway intersections, large supermarkets, large parking structures, and high-density residential areas.
